The Dynascan R-38 is a license-free PMR-446 transceiver designed for fast and secure communications within the European Union. Its main feature is the exclusiveReplay function, which allows you to replay the most recent messages received to prevent information loss during the workday. It offers 16 channels with CTCSS/DCS subtones, an easy-to-read color LCD screen, and a 3.7 V / 2000 mAh Li-Ion battery that lasts the entire workday. It is very easy to use but incorporates advanced features such as channel scanning, Dual Watch, recording and playback of communications, VOX, and noise reduction—ideal for security teams, industrial settings, the hospitality industry, and event planning. Thanks to itsIP67 certification, this device offers excellent protection against dust and water, making it a true all-terrain solution.

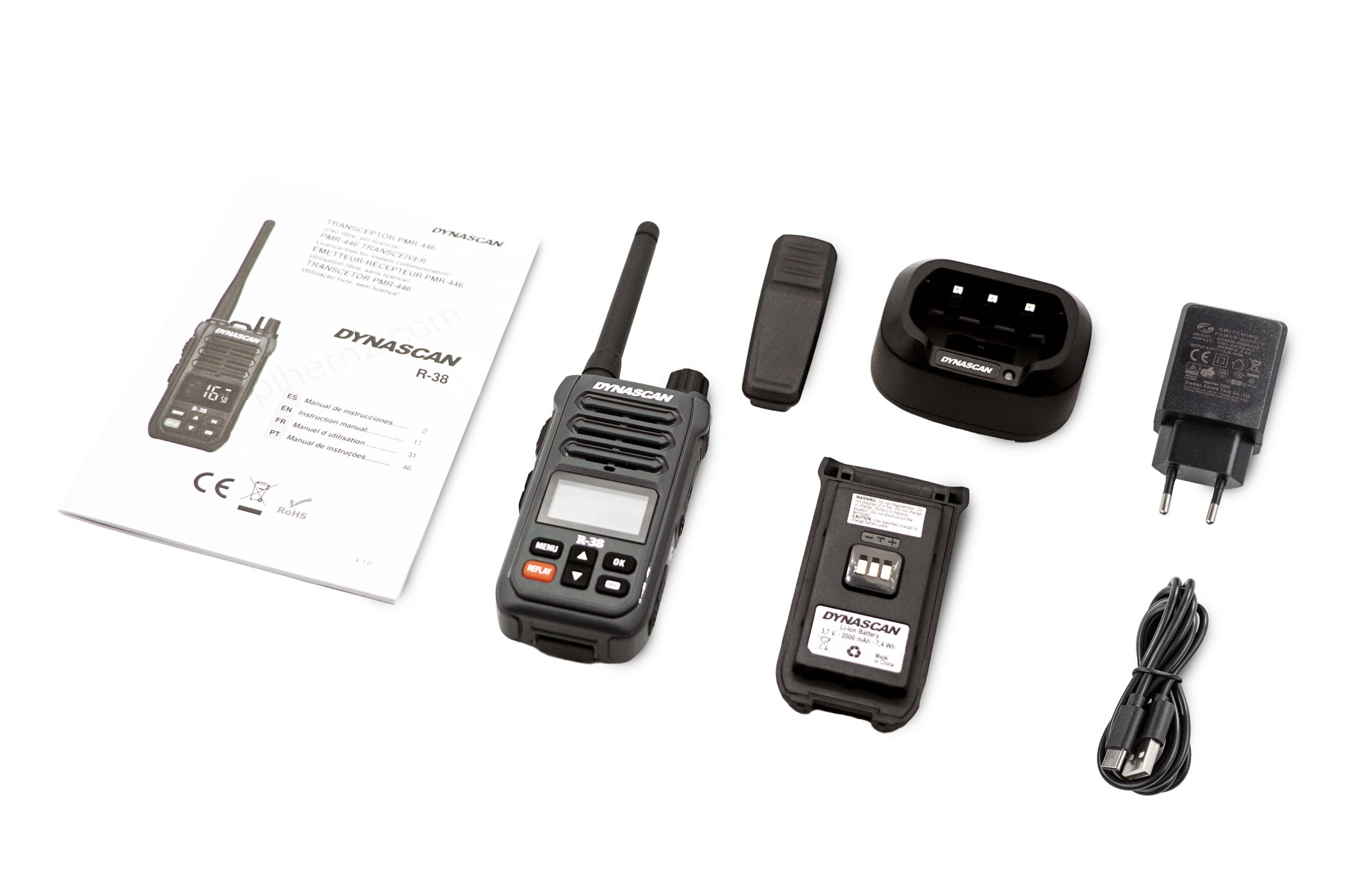

CONTENTS
• PMR-446 Transceiver
• Integrated Antenna
• Belt Clip
• Desktop Charger
• AC/DC Power Adapter
• USB-C Cable
• Instruction Manual
CHARACTERISTICS
• PMR-446 frequency range.
• 16 channels
• Easy-to-read color LCD screen
• Water and dust resistance: IP67 compliant
• High-capacity battery (3.7 V/2000 mAh)
• Adjustable squelch (SQL)
• 50 analog CTCSS sub-tone groups and 83 DCS digital code groups independently selectable for transmission and reception
• Priority channel selection and scanning
• Dual watch (DW) function
• Callback function
• Scan type selection
• Noise reduction function (NCR)
• Voice-activated transmission (VOX)
• Busy channel lockout function (BSY)
• Call tone selection (CAL)
• Roger beep function
• Keypad beep
• Display lighting adjustment (DIM)
• Display lighting timer (ABL)
• Battery saving function
• Keypad lock function
• Battery charge level indication on the LCD display
CHARACTERISTICS
• PMR-446 frequency range.
• 16 channels
• Easy-to-read color LCD screen
• Water and dust resistance: IP67 compliant
• High-capacity battery (3.7 V/2000 mAh)
• Adjustable squelch (SQL)
• 50 analog CTCSS sub-tone groups and 83 DCS digital code groups independently selectable for transmission and reception
• Priority channel selection and scanning
• Dual watch (DW) function
• Callback function
• Scan type selection
• Noise reduction function (NCR)
• Voice-activated transmission (VOX)
• Busy channel lockout function (BSY)
• Call tone selection (CAL)
• Roger beep function
• Keypad beep
• Display lighting adjustment (DIM)
• Display lighting timer (ABL)
• Battery saving function
• Keypad lock function
• Battery charge level indication on the LCD display
TECHNICAL SPECIFICATIONS
General
• Frequency range: 446.00625 MHz – 446.19375 MHz (Tx/Rx).
• Number of channels: 16.
• Channel spacing: 12.5 kHz.
• Frequency stability: ±2.5 ppm.
• Modulation type: FM (11K0F3E).
• Power supply: 3.7 V/2000 mAh (7.4 Wh) lithium-ion battery.
• Power consumption: ≤0.8 A.
• Operating temperature: -20 °C to +60 °C.
• Antenna type: Integral.
• Dimensions (height x width x depth): 185 x 55 x 32 mm (with antenna).
• Weight: 200 g (with battery).
Transmitter
• Transmission power (P.R.A.): 0.5 W.
• Adjacent channel power: ≤-60 dB.
• Spurious emissions: ≤0.25 μW.
• Distortion: ≤3%.
Receiver
• Sensitivity (12 dB SINAD): ≤-121 dBm.
• Adjacent channel selectivity: ≥65 dB.
• Spurious emissions: ≤2 nW.
• Audio power: ≥1 W.
• Distortion: ≤3%.
TECHNICAL SPECIFICATIONS
GENERAL
• Frequency range: 446.00625 MHz – 446.19375 MHz (Tx/Rx).
• Number of channels: 16.
• Channel spacing: 12.5 kHz.
• Frequency stability: ±2.5 ppm.
• Modulation type: FM (11K0F3E).
• Power supply: 3.7 V/2000 mAh (7.4 Wh) lithium-ion battery.
• Power consumption: ≤0.8 A.
• Operating temperature: -20 °C to +60 °C.
• Antenna type: Integral.
• Dimensions (height x width x depth): 185 x 55 x 32 mm (with antenna).
• Weight: 200 g (with battery).
TRANSMITTER
• Transmission power (P.R.A.): 0.5 W.
• Adjacent channel power: ≤-60 dB.
• Spurious emissions: ≤0.25 μW.
• Distortion: ≤3%.
RECEIVER
• Sensitivity (12 dB SINAD): ≤-121 dBm.
• Adjacent channel selectivity: ≥65 dB.
• Spurious emissions: ≤2 nW.
• Audio power: ≥1 W.
• Distortion: ≤3%.
